4 Ports Heat Sink Mates QSFP28 Cage Female EMI Tabs For 100G Ethernet
1. GLGNET SFP Cage Products
| By Protocol | SFP Series | SFP Cages |
| SFP Plus Cages |
| SFP28 Series | SFP28 Cages |
| QSFP Series | QSFP Plus Cages |
| QSFP14 Cage |
| QSFP28 Cages |
| Female Connectors | SFP Female Connectors |
| SFP Plus Female Connectors |
| QSFP14 Female Connectors |
| By Structure | SFP Series | 1 x 2, 1 x 4, 1 x 6; 2 x 1, 2 x 2, 2 x 4, 2 x 5, 2 x 6, 2 x 8 |
| SFP Plus Series | 1 x 2, 1 x 4, 1 x 6; 2 x 1, 2 x 2, 2 x 4, 2 x 6, 2 x 8 |
| SFP28 Series | 1 x 1, 1 x 4 |
| QSFP Plus Series | 1 x 1 |
| QSFP14 Series | 1 x 2 |
| QSFP28 Series | 1 x 1 |
| SFP Female Connectors | 20pin |
| SFP Plus Female Connectors | 20pin |
| QSFP14 Female Connectors | 38pin |
Custom Service is Available,
The SFP Cage can be with EMI Tabs, EMI Gasket, Heat Sink, and Light pipes as required;
2. GLGNET Customization Service
- Support to make Integrated QSFP28 Connector with EMI Cages, isolated QSFP28 Connector, or Isolated QSFP28 Cages
- The QSFP28 Cage can be with 1 x n Ganged Structure, or 2 x n Stacked Structure
- QSFP28 Cage can be with different heat dissipation Hole
- QSFP28 Cage can be with Light pipes or without, Built in or on Cage top or buttom
- QSFP28 Cage can be with Heat Sink or without, and the Heat sink with different Style
- QSFP28 Cage can be with EMI Finger Spring or elastomeric Gasket
- Different Mount Typ, Press Fit or Solder Post and the Pin length can be customized
3. GLGNET QSFP28 Cage ( 49007-00N011 ) Structure:

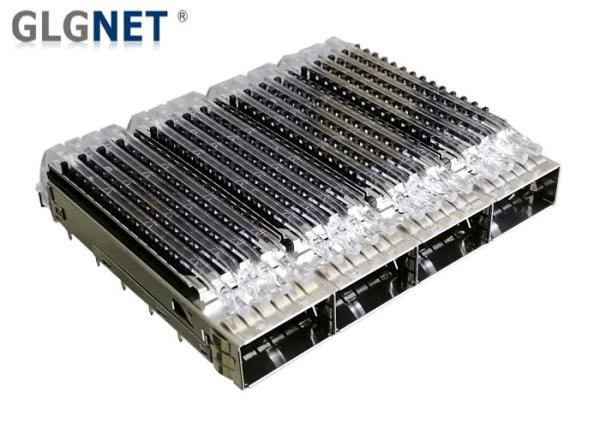

| Product Description | QSFP28 Cage with Heat Sink Ligth Pipe and EMI Tabs mates with QSFP28 Connector Transceiver |
| QSFP28 Cage Length | 67.9 mm |
| QSFP28 Cage Width | 76.46 mm |
| QSFP28 Cage Height | 15.15 mm (include Heat Sink ) |
| QSFP28 Cage Press Fit PIN Length | 2.05 mm |
| QSFP28 Cage Single Port Width | 18.75 mm |
| QSFP28 Cage Single Port Height | 8.95 mm |
| Appearance | one piece Stampled and Formed Metal Cage, with heat dissipation holes, additional heat sink, EMI Tabs and Light Pipes |
| Light Pipes | Yes, let know the Connection Status |
| Heat Sink | Yes, provide better heat dissipation |
| Monut Type | Press Fit Mount Type |
| EMI Gasket | Without |
| EMI Tab Spring | With, provide better EMI protection |
4. GLGNET QSFP28 Cage ( 49007-00N011 ) Materials
| Appearance | one-piece Stampled and Formed Metal Cage, with heat dissipation holes, additional heat sink, EMI Tabs and Light Pipes |
| Cage | 0.25 mm thickness copper alloy |
| EMI Tabs | Copper Alloy |
| Heat Sink | Aluminum , with black Oxide Treatment On Surface |
| Light Pipe | Polycarbonate Color Clear |
| CLIP | Stainless steel |
5. GLGNET QSFP28 Cage ( 49007-00N011 ) Advantages:
| Item | Benefits |
| MT design packaged in tape and reel | Ensures easy pick-and-place to the PCB |
| Single port cages available in press-fit, solder-post and PCI (1°) versions; ganged cages available in press-fit version | Enables use with various board thicknesses and assembly processes |
| Press-fit tails accommodates belly-to-belly applications for single and ganged cages | Ensures best use of PCB real estate |
| Modules oriented "belly-to-belly" when inserted | Ease of removal of the module from the port |
| Integrated light pipes for use with SMT Light Emitting Diode's (LED's) | Provides port status and activity feedback to the user |
| Unique thumb latch | Provides intuitive squeeze and pull-latching mechanism |
| Hot-pluggable transceivers | Allow insertion and removable of plug without powering down the system |
| Press-fit termination to PCB | Eliminates soldering, lowering the applied cost and avoiding solder-related issues |
| Ganged cages have 360° elastomeric gaskets, spring fingers and multiple ground-pin locations | Provides advanced EMI shielding to the bezel |
| Elastomeric or metal gasket | Two options for superior EMI protection |
| Zinc diecast backshells | Provide 360° Electro Magnetic Interference (EMI) shielding |
6. GLGNET Advantages:
- We have our Own Hardware Mold and Plastic Mold
- Has 3 LS-WEDM Machines
- Has 12 WEDM Machines and 8 CNC Machines
- Has 20 Grinding Machines and 12 Electrical Discharge Machines
- Has 30 Stamping Machines
- Has 55 Plastic Injection Machines
- Has Automatic Assembly Workshops
- Fast Response, Professional R&D Engineers, Positive Service Team, Ensure all process effective and well-organized;
- 20 years experiences in Variety Connectors
- 1500 Employees
- 58 R&D Engineers.
- 22000 square meters Factory
- 20kk ports / month Capacity
- We support Costom Service;
- Our products are compliant with RoHS, REACH and UL certification
- Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
- ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
7. GLGNET QSFP28 Cage ( 49007-00N011 ) Applications:
| By Structure | QSFP28 Female Connector |
| QSFP28 Transceiver ( with Fiber Cable ) |
| By Function | Servers |
| Storages |
| Switches |
| Routers |
| By Protocol | Telecommunications |
| Data/Communications |
| Networking |
| Fibre Channel and Gigabit Ethernet |
This is not a definitive list of applications for this product. It represents some of the more common uses.
8. Application Example:
QSFP28 Cage + QSFP28 Connector + QSFP28 Transceiver for 40G to 100G Ethernet;
9. GLGNET QSFP28 Cage ( 49007-00N011 ) Mechnical Drawing
You can know the Demensions Details from Following Drawing
